Drone-in-a-Box for Enterprise
Outsourced Remote Operations
Utilise RocketDNA’s regulatory approvals, for remote Beyond-Visual-Line-Of-Site Operations, for fast and simple enablement of your drone-in-a-box operations.
24/7 Operations Anytime, Anywhere
24-hour, 7-day a week and night operations available
Use xBot or Your Own
Can be used with RocketDNA’s ready-to-go xBot system or BYOB (Bring-your-own-Box)
Regulatory Ready,
Pay Per Flight
Leverage our existing regulatory approvals and pay per flight hour
Power & Comms Redundancy
Redundant power and comms across multiple locations

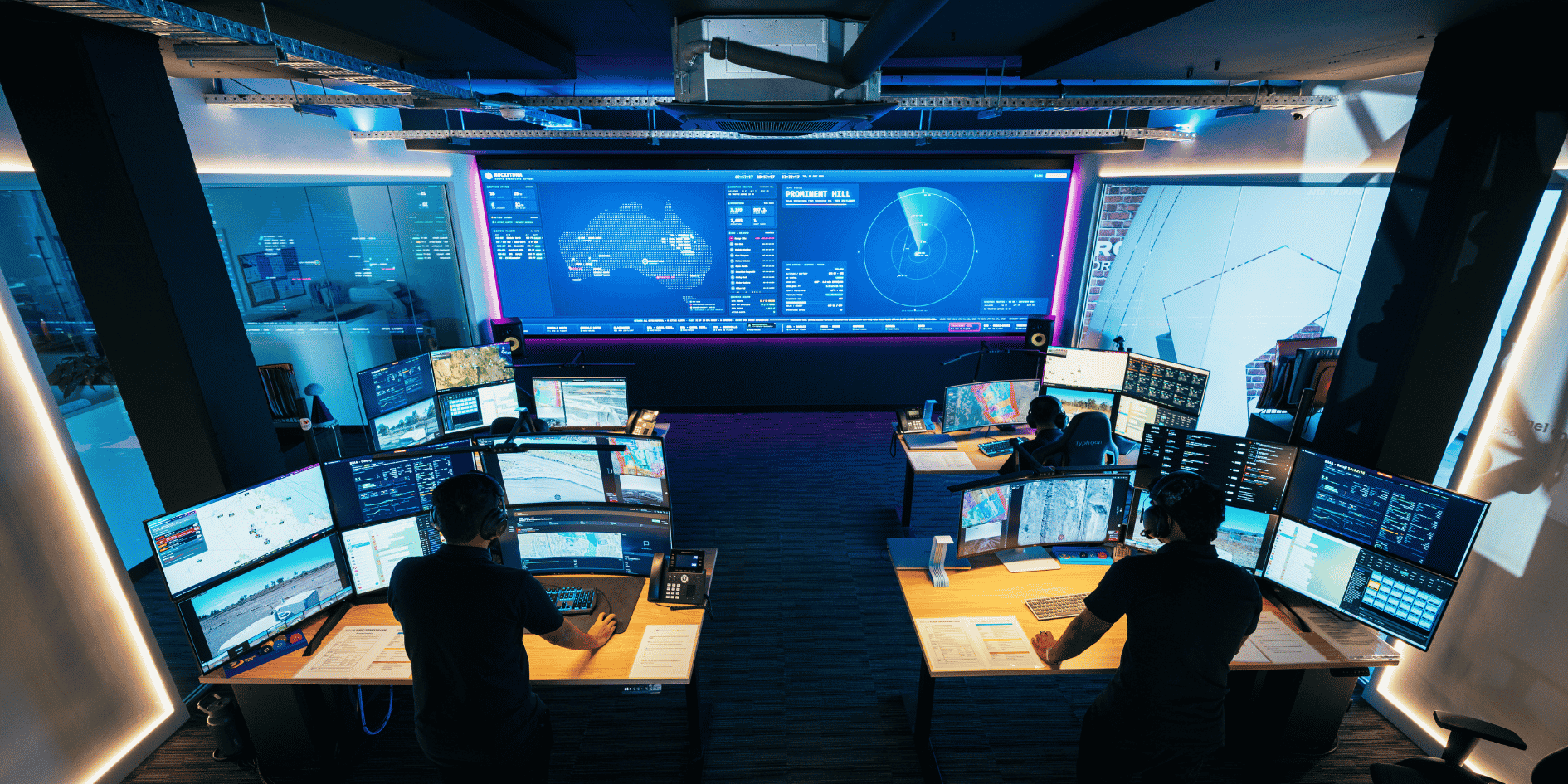

Multiple ROCs in Africa & Australia
24/7 coverage using low-latencysatellite connectivity
Highest Safety Standards
Built in redundancies for emergencyScenarios & staff by highly trained pilots
SurveyBot Specs and Remote Operating Centre
Robust Hardware and Sensors
Deploy on-site 24/7 to suite your data application workflow
Hardware Specifications
Automate your workflows using our proven mix of robust hardware & sensors
Dock
Product Name
DJI Dock 2
Total Weight
34 kg (without aircraft)
The actual product weight might vary due to differences in batch materials and external factors
Dimensions
Dock Cover Opened: 1228x583x412 mm (LxWxH)
Dock Cover Closed: 570x583x465 mm (LxWxH)
The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm).
Input Voltage
100-240 V (AC), 50/60 Hzk 2
Input Power
Max 1000 W
Operating Temperature
-25° to 45° C (-13° to 113° F)
When the ambient temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks.
Ingress Protection Rating
IP55
Max Operating Altitude
4000 m
Receiving Frequency of RTK Base Station Satellite
Simultaneously receive:
GPS: L1 C/A, L2
BeiDou2: B1l, B2l, B3l
BeiDou3: B1l, B3l
GLONASS: L1, L2
Galileo: E1, E5B
Positioning Accuracy of RTK Base Station
Horizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)
Battery Capacity
12 Ah
Output Voltage
12 V
Battery Type
Lead-acid battery
Battery Life
> 5 hours
Product Name
DJI M3D or M3TD
Max Takeoff Weight
1610 g
DimensionsMax Wind Speed Resistance
During Operation: 12 m/s
During Takeoff/Landing: 8 m/s
Max Takeoff Altitude
4000 m
Max Flight Time
50 minutes
Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 46.8 kph in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo-taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
Global Navigation Satellite System
GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when the RTK module is enabled.)
Hovering Accuracy Range (windless or breezy)
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning:
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)
Operating Temperature
-20° to 45° C (-4° to 113° F)
Receiving Frequency of RTK Base Station Satellite
Simultaneously receive:
GPS: L1 C/A, L2
BeiDou2: B1l, B2l, B3l
BeiDou3: B1l, B3l
GLONASS: L1, L2
Galileo: E1, E5B
Ingress Protection Rating
IP54
DJI Matrice 3D
DJI Matrice 3TD
Wide-angle Camera
4/3 CMOS
24mm Format Equivalent
20MP Effective Pixels
Mechanical Shutter
1/1.32-inch CMOS
24mm Format Equivalent
48MP Effective Pixels
No mechanical shutter
Tele Camera
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
56x hybrid zoom
1/2-inch CMOS
162mm Format Equivalent
12MP Effective Pixels
56x hybrid zoom
Thermal Camera
N/A
40mm Format Equivalent
28x Digital Zoom
↳ Normal Mode
640x512@30fps
↳UHR Infrared Image Mode:
1280x1024@30fps(With the UHR Infrared Image function enabled, the aircraft automatically enables or disables UHR Infrared Image mode according to the ambient light brightness.)
xBot® Upgrade Option includes additional functionality:
- 1080p HD PTZ Camera
- Weather Station
- Dual 5G Modem + Failover Redundancy (Starlink, WiFi, Wired)
- Additional LED Lighting
- Galvanised Skid Base
- Industrial Electrical Power Cabinet & Isolation Switches
Easy Deployment across your Operations
Cover multiple assets with our modular approach & global satellite coverage
Flight Time
Max. Operating Radius
Rapid Charging: 10% - 90%
Download our Case Study
Discover how RocketDNA deployed and tested its Surveybot to an actual customer site, helping to automate their on-site survey workflows.
Leverage our Remote BVLOS Experience and approvals to start flying today!
- Realise the potential of remote operations to improve your operational efficiency today
- Remove colleagues from dangerous or high-risk environments
- Ensure consistent reporting and proactive monitoring across your drone data capture operations
Trust your Remote Operations to the Industry Leader
- RocketDNA has significant experience in the mining, security, critical assets & public safety industries
- We have an understanding of all your data needs & can work within requirements
- Our ops centres are staffed by a large pool of highly trained remote operators
- Our ROC centres are fully CASA approved and all administration is taken care of by RocketDNA, including individual BVLOS area approvals for your specific operations
Integrates seamlessly with your data workflows

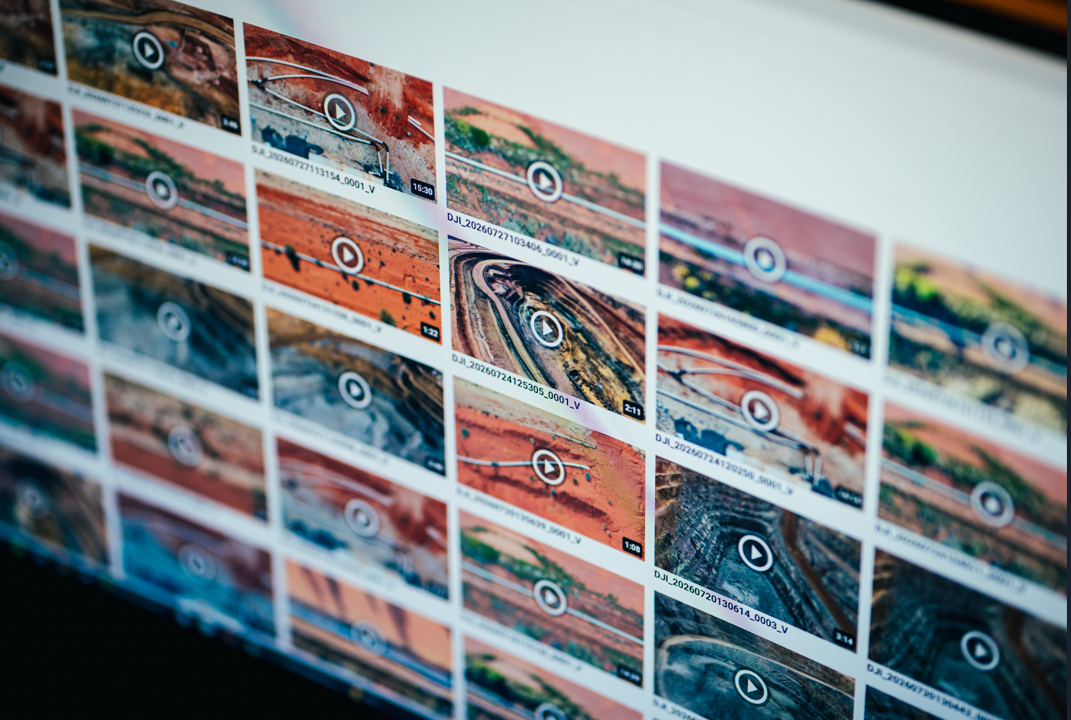

- Raw data available immediately through our web-based SiteTube application
- Manually download or integrate with existing software and GIS platforms for automated processing and insights
Safety and Quality standards are our top priority
- Pilots consistently trained and monitored to adhere to best practice and safety standards
- RocketDNA is audited annually against the BARS standard; the highest aviation safety audit in the world
- RocketDNA consistently improves quality and safety standards through engagement with regulatory bodies, clients and other stakeholders
Our Process
Trust the industry-leader in delivering your remotely operated autonomous drone strategy
Contact RocketDNA for
ROC DEMO
Schedule Your ROC Demo with RocketDNA Today
1
Review Features &
Pricing Options
Explore Features & Find the Right Plan for Your Needs
2
Set up of xBot system and site integration
Seamless xBot System Setup and Site Integration
3
Flight planning missions
and risk assessments conducted
Strategic Flight Planning & Comprehensive Risk Assessments
4
Start flying with days of set-up on site
Begin Flying Within Days of On-Site Setup
5
Related Projects
Who have we previously provided this product/service to?
No items found.
Frequently Asked Questions
01
How reliable is the xBot? What kind of extreme environments can it operate in?
02
What do I require on-site to operate a xBot?
03
How long does it practically take to deploy?
04
What is required with regards to Regulatory Approvals & Beyond Visual Line of Site?
05
Who is monitoring the drones and where are they located?
06
What Commercial models do you offer?
07
What integrations are available? How do I access and share my data?
Upgrade Options Available
Our xBot Platform has a modular design, allowing for customisation and integration to suite your requirements
Custom Software Development & API Integration
Trigger your xBot using our cloud-based API and automatically set GPS waypoints.
Cloud-based AI Visualisation Platform
Centralise all your visual data in our online platforms, allowing for further analysis & archiving
Global Data Satellite Connectivity
Using Starlink Business, we are able to deploy our xbots across the world to support your remote operations.
On-Site Maintenance SLA
Guarantee up-time and performance with our on-site maintenance programme.
Dedicated Remote Operating Centre
Deploy On-Demand with your own dedicated Flight Controller and Remote Operating Centre. Host your ROC at your premises or within our facilities.
Ready-to-Deploy Mine Spec Skid
Designed for harsh environments with high safety requirements, our ready-to-deploy skid includes electrical preconfiguration
Learn more about Drone-in-a-Box for Enterprise
