DJI Matrice 4E
DJI Matrice 4E Intelligent Multi Sensor Drone
Starting from
The DJI M4E drone is part of the M4 series of intelligent, multi sensor drones for enterprise applications. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. equipped with advanced features such as smart detection and measurement with laser range finder. Flight operations are now safer and more reliable with significantly enhanced sensing capabilities.
Available Packages
- DJIM4EPLUS
- DJI Matrice 4E Including DJI Care Enterprise Plus Auto-Activated
Key Features include:
- 3-directional ortho capture and 5-directional oblique capture
- Built in RTK module
- 49-minute flight time.
- Minimum capture interval of 0.5s
- Real time AI detection of people and vehicles
- Laser range finder for real-time precision measurement
- Excels in low-light environments
- 3D Smart capture for precision modelling
Flight operations are now safer, more reliable, and powered by AI, with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded.
The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. The M4E comes with a built-in RTK module and has 49minutes flight time. It has 3-directional ortho capture and 5-directional o blique capture, significantly enhancing mapping efficiency compared with conventional operating modes.
M4E5-directional oblique will increase 40% efficiency compared with the M3E. TheM4E supports a maximum flight speed of 21m/s, and a minimum capture interval of0.5s.
DistortionCorrection 2.0 provides high-precision in-camera distortion correction with residual distortion less than 2 pixels.

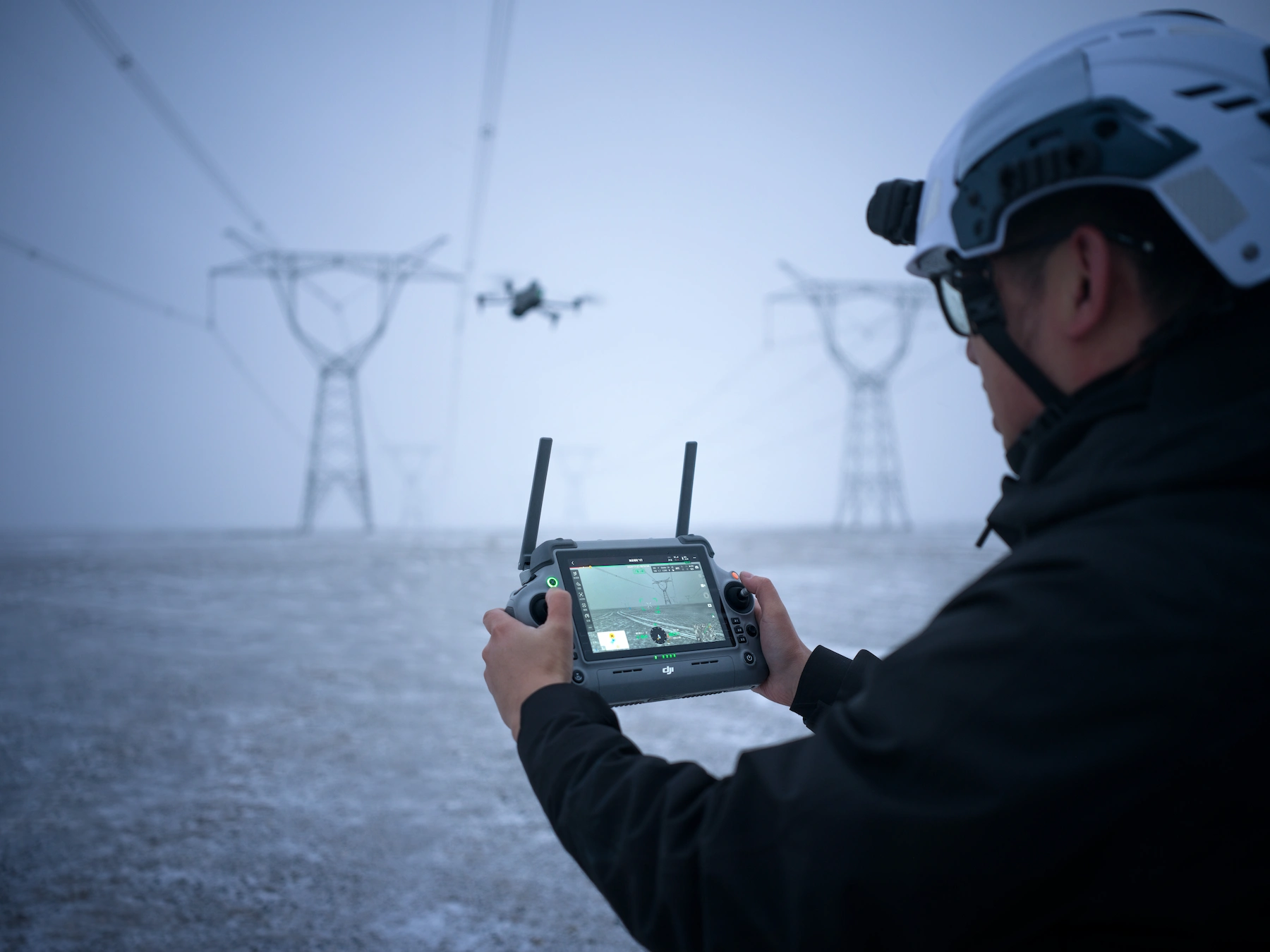

Remote controller integrates with DJI Terra modelling capability, making it possible to generate precise mapping route and capture detailed modelling. More powerful obstacle avoidance allows to complete diversified and complex close-range modelling.
.webp)
Hardware Specifications
- Product Name Matrice4E
- Max Take-off Weight (with propellors) 1219g
- Takeoff Weight (with low noise propellors) 1229g
- Dimensions
- Folded: 260.6×113.7×138.4 mm (L×W×H)
- Unfolded: 307.0×387.5×149.5 mm (L×W×H)
- Max Payload 200 g
- Propellor Size 10.8 in
- Max Ascent Speed 10m/s
- Max Altitude 6000m
- Max Operating Altitude with Payload 4000m
- Max Flight Time (Without Wind)
- 49 min (standard propellers)
- 46 min (low-noise propellers)
- Max Flight Distance (No Wind)
- 35 km (standard propellers)
- 32 km (low-noise propellers)
- Max Wind Speed Resistance 12 m/s*
- Compatible Battery DJI Matrice 4E/T Series IntelligentFlight Battery
- Image Sensor
- Wide: 4/3-inchCMOS Effective Pixels: 20 MP
- MediumTele Camera: 1/1.3-inchCMOS, Effective Pixels: 48 MP
- Telephoto: 1/1.5-inchCMOS, Effective Pixels: 48 MP
- Laser Rangefinding Measurement Range: 1800 m (1Hz) @20% reflectivity target
- AL1 Spotlight Illuminance 4.3±0.2 lux @ 100 meters,17±0.2 lux @ 50 meters
- A1 Speaker Broadcast Distance 300m
