DJI Zenmuse P1
Efficiency through Flexible Full-frame Photogrammetry
Starting from

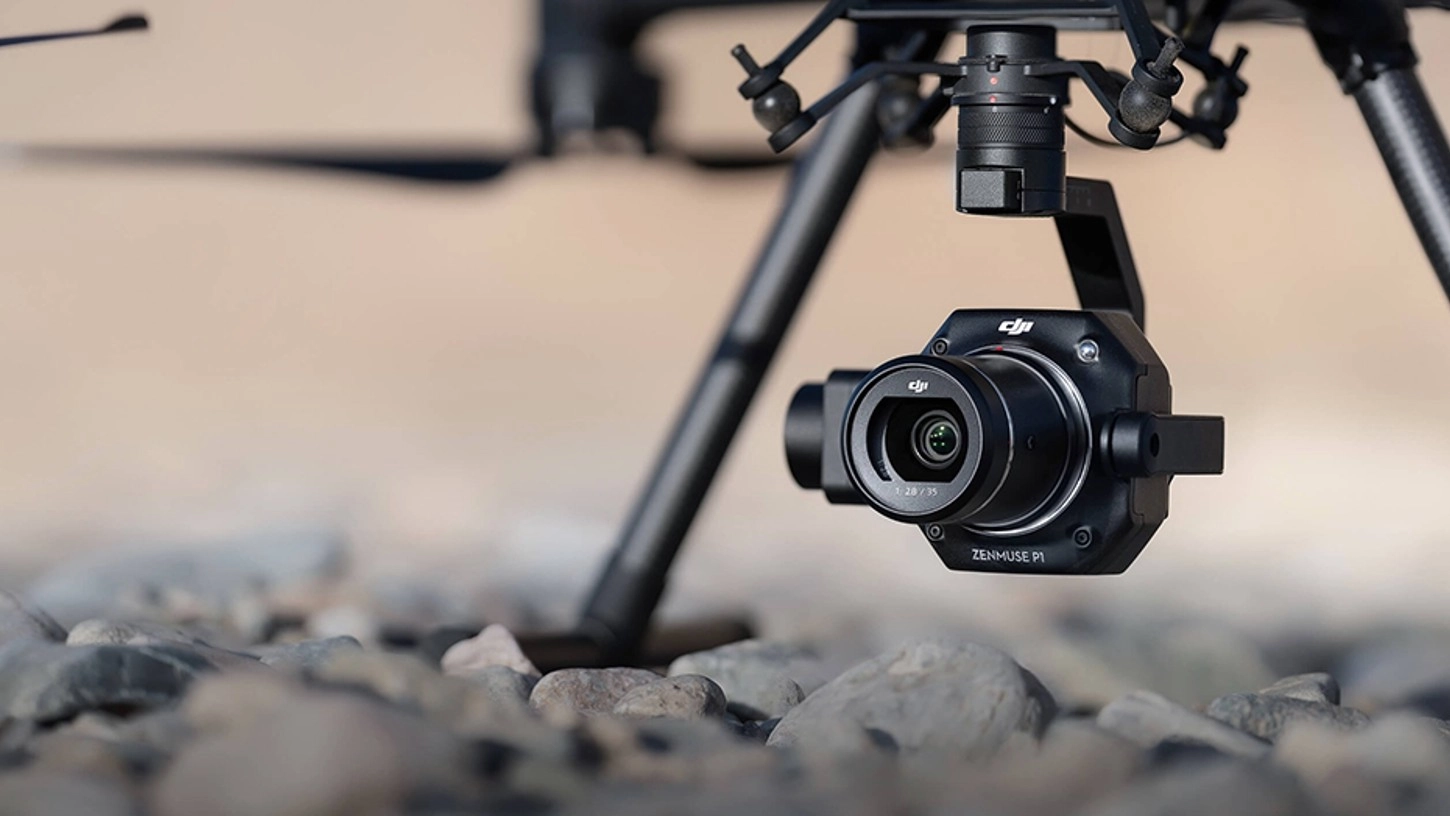

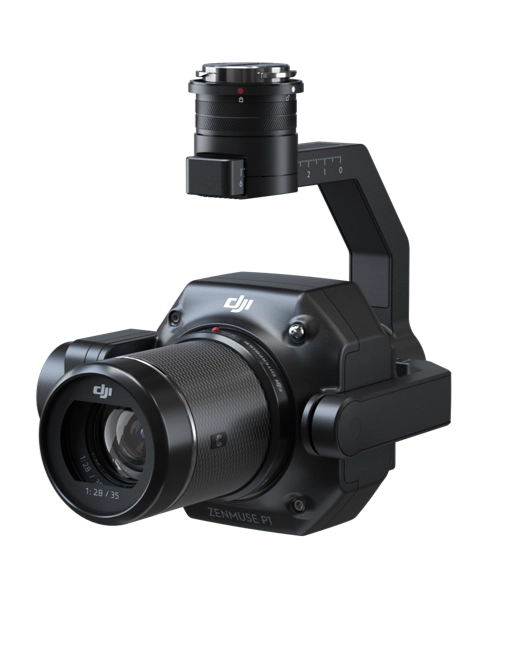

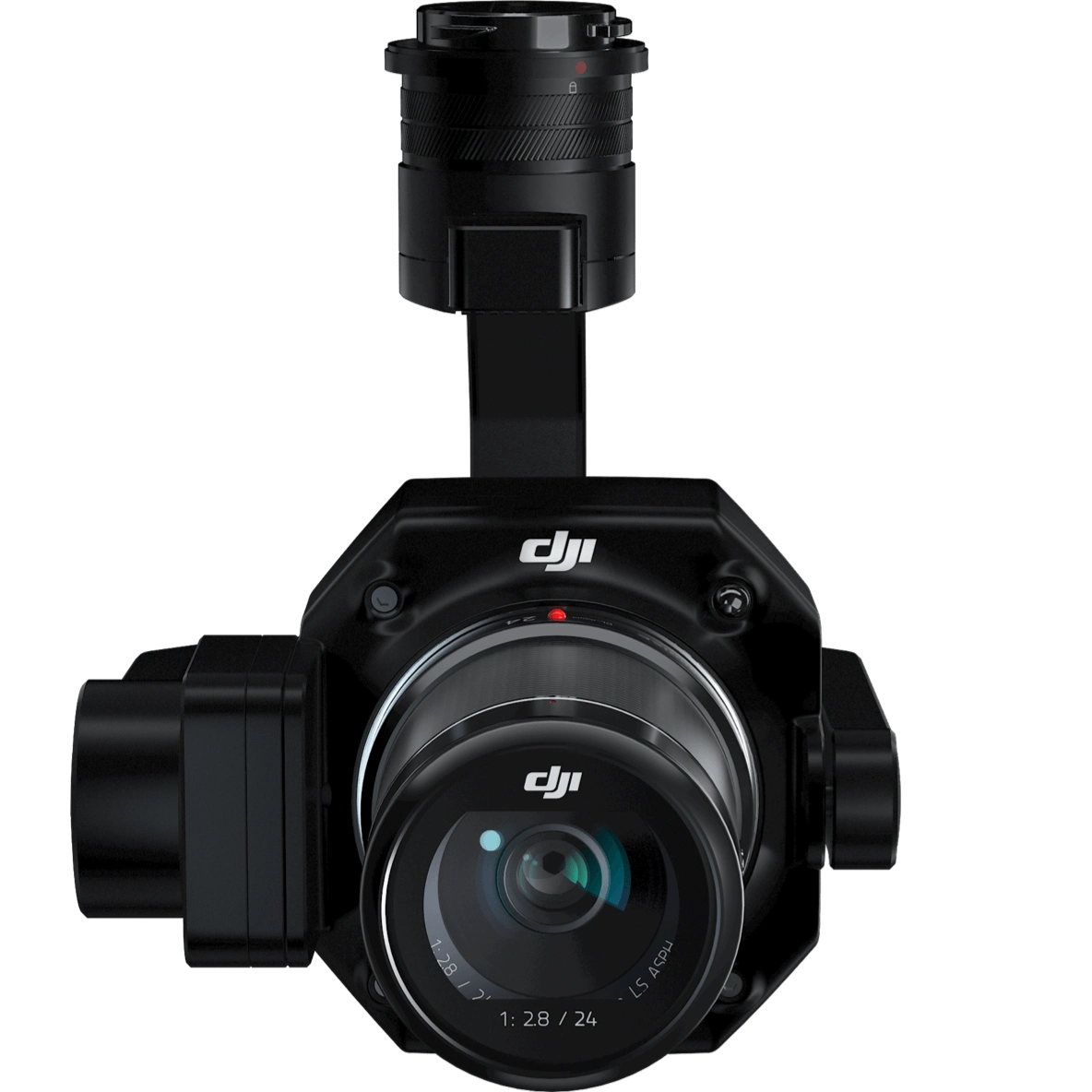

The DJI P1 is a high-performance,versatile surveying payload with an integrated, full-frame 45-Megapixels CMOSwith 24mm, 35mm and 50mm lens options and 3-axis stabilized gimbal. Combinewith the M300 RTK platform and DJI Terra, the DJI P1 provides efficient andhigh accuracy aerial photogrammetry solution for enterprise customers.
Available Packages
- DJIZMP1
- DJI Zenmuse P1 SP Combo (Free DJI Enterprise Sheild Basic Included)
Key Features include:
- No GCPs: Horizontal Accuracy 3 cm / Vertical Accuracy5 cm
- High Efficiency: 3 km area coverage under single flight
- High Resolution: 45-Megapixels Full-frame CMOS
- 3-axis stabilized gimbal with Smart Oblique Capture
- Mechanical Global Shutter 1/2000s Shutter Speed
- TimeSync 2.0 microsecond-level System Synchronization
TheP1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km in a single flight.
Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.
Create2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.
Hardware Specifications
- Product Name Zenmuse P1
- Dimensions 198×166×129 mm
- Weight 800g
- Power 20W
- IP Rating IP4X
- Supported Aircraft Matrice 300 RKT
- Operating Temp Range -20° to 50° C (-4° to 122° F)
- Absolute Accuracy
- Horizontal:3 cm, Vertical: 5 cm *
- *Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75%front overlap rate and a 55% side overlap rate.
- Sensor
- Sensor size (Still): 35.9×24 mm (Full frame)
- Sensor size (Max video recording area): 34×19 mm
- Effective Pixels: 45MP
- Pixel size: 4.4 μ
- Photo Size 3:2(8192×5460)
- Operation Modes Photo, Video, Playback
- Minimum Photo Interval 0.7 s
